The FiberTrix series is a family of PON MDUs — multi-dwelling units that terminate PON fiber at a building or workspace and deliver Gigabit Ethernet with PoE+ on every port: the FiberTrix-8 for GPON/EPON desktops and small sites, the FiberTrix-24 for 1U FTTB up to XGS-PON.
The FiberTrix-8 runs GPON or EPON on one dual-mode XPON port; the FiberTrix-24 takes a PON SFP — GPON, XG-PON or XGS-PON by the ONU module inserted.
Every Gigabit port supplies IEEE 802.3af/at PoE+ at up to 30 W — cameras, APs and phones power straight off the drop, with a 370 W total budget on the FiberTrix-24.
One PON drop serves a building floor, an office or a desk: 8 ports in a compact desktop unit, 24 in a 1U rackmount rated −30 to +60 °C.
16K MAC addresses, 4,072 VLANs with translation and QinQ, LACP, RSTP and MSTP, static routing and 90 Gbps switching capacity.
ACL filtering on both models — plus DDoS protection and unauthorized-ONU detection on the FiberTrix-8, 802.1X / AAA / RADIUS / TACACS+ on the FiberTrix-24; 802.1p QoS.
OMCI management from the OLT on both models, plus Web, Telnet and CLI locally — and SSH v2 on the FiberTrix-24; dying-gasp alarm on the FiberTrix-8.
Two form factors, one job: terminate the PON and power the site. Every model has its own datasheet (R01), and quotes are handled per model.
Compact desktop MDU: one dual-mode XPON port (GPON Class B+ / EPON PX20+) and eight PoE+ Gigabit ports. 205 × 125 × 28 mm · 0.615 kg · 54 V DC adapter.
Datasheet (PDF) ↓

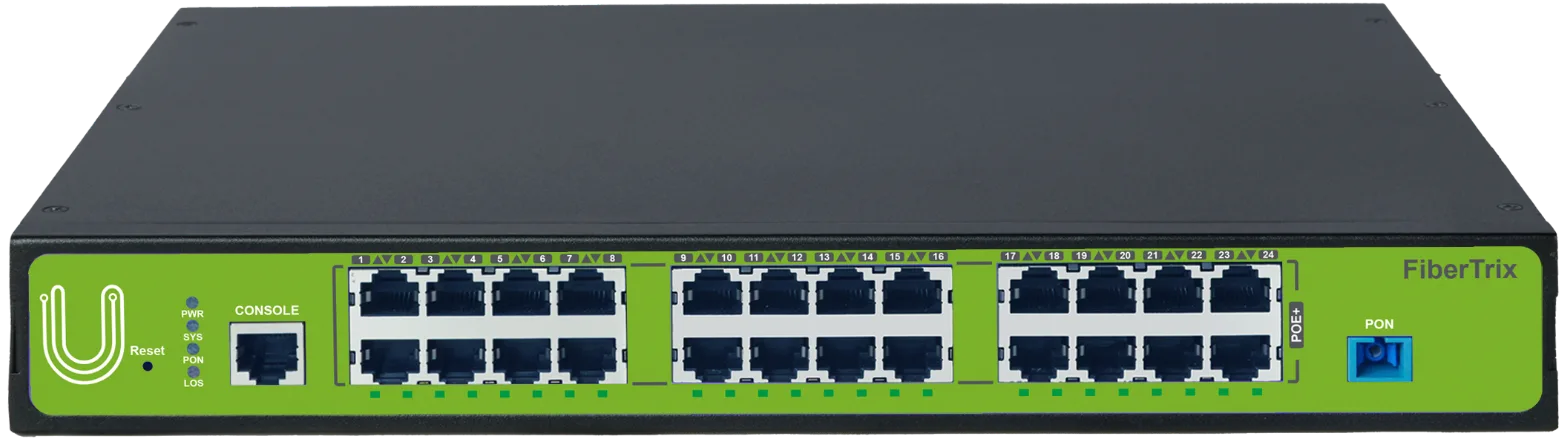

1U rackmount MDU: the PON SFP slot runs GPON, XG-PON or XGS-PON by the module inserted — 24 PoE+ ports, 370 W budget, 90 Gbps switching, −30 to +60 °C.
Datasheet (PDF) ↓One PON drop per floor or riser: the FiberTrix-24 serves 24 powered Gigabit ports to units, offices and building systems from a single 1U box.
Fiber to the office and the desk — eight PoE+ ports at the workspace for IP phones, PCs and wireless APs, on GPON or EPON alike.
Every port supplies PoE+ up to 30 W, so cameras and APs power straight off the fiber drop — no local power supplies to install or maintain.
Every value below is from the official FiberTrix datasheets (R01).
| PON interface | |
| PON port | 1× XPON, dual mode — GPON Class B+ / EPON PX20+ |
|---|---|
| Connector / fiber | SC/UPC, single-mode |
| Wavelength | TX 1310 nm, RX 1490 nm |
| TX optical power | 0 to +4 dBm |
| RX sensitivity | −27 dBm |
| Overload optical power | −8 dBm (GPON) · −3 dBm (EPON) |
| Transmission distance | 20 km |
| Standards | ITU-T G.984 (GPON), IEEE 802.3ah (EPON) |
| User ports & PoE | |
| User ports | 8× GE RJ45, auto-negotiation — all PoE / PoE+ |
| PoE standard | IEEE 802.3af / 802.3at, up to 30 W per port |
| Indicators | Power, PON, LOS, SYS, LAN1–8 |
| Software | |
| Management | Web, Telnet, CLI; OMCI from the OLT; automatic detection, configuration and firmware upgrade |
| VLAN | Tag / transparent / trunk modes (up to 8 VLANs) |
| QoS | 4 queues, SP / WRR scheduling, IEEE 802.1p |
| Security | DDoS protection; ACL / MAC / URL filtering; unauthorized ONU detection |
| Multicast | IGMP v1/v2, IGMP snooping; up to 8 multicast VLANs, 64 groups |
| Alarms | Dying gasp, port loop detection, Ethernet port loss |
| Power & physical | |
| Power adapter | External AC-DC adapter, 54 V DC / 2.4 A |
| Power supply | ≤130 W |
| Dimensions (L × W × H) | 205 × 125 × 28 mm |
| Net weight | 0.615 kg |
| Operating environment | −10 °C to +55 °C; 10%–90% RH, non-condensing |
| Storage environment | −30 °C to +70 °C; 10%–90% RH, non-condensing |
| PON interface | |
| PON port | 1× SFP slot — GPON, XG-PON or XGS-PON according to the ONU optical module inserted |
|---|---|
| Supplied ONU module | G model: GPON ONU SFP · XG model: XG-PON ONU SFP+ · XGS model: XGS-PON ONU SFP+ |
| Line rate (up / down) | GPON 1.244 / 2.488 Gbps · XG-PON 2.488 / 9.953 Gbps · XGS-PON 9.953 / 9.953 Gbps |
| Wavelength | GPON: TX 1310 nm, RX 1490 nm · XG(S)-PON: TX 1270 nm, RX 1577 nm |
| TX optical power | GPON +0.5 to +5 dBm · XG-PON +2 to +7 dBm · XGS-PON +4 to +9 dBm |
| RX sensitivity | −28 dBm |
| Overload optical power | −8 dBm |
| Transmission distance | 20 km |
| Standards | ITU-T G.984 (GPON), G.987 (XG-PON), G.9807.1 (XGS-PON) |
| Ports & performance | |
| User ports | 24× GE RJ45, 10/100/1000 Mbps auto-negotiation — all PoE / PoE+ |
| Management ports | 1× console, 1× AUX (RJ45) |
| Switching capacity | 90 Gbps |
| MAC address table | 16K |
| Software | |
| Management | Telnet, CLI, Web, SSH v2; TFTP file transfer, NTP, system log, alarm management, OMCI |
| Layer 2 | 4,072 VLANs; VLAN translation and QinQ; port / protocol VLAN; LACP; IEEE 802.1D STP, 802.1w RSTP, MSTP; port isolation; storm control; port rate limiting |
| Layer 3 | Static routing; IPv6 with SLAAC, IPv6 Telnet / HTTPS |
| DHCP | DHCP server, relay and snooping, Option 82; DHCPv6 server and relay |
| Security | L2–L4 ACL traffic identification and filtering; IEEE 802.1X and AAA; RADIUS and TACACS+ |
| QoS | Based on port, VID, ToS and MAC address |
| Multicast | IGMP v1/v2, IGMP snooping and IGMP proxy, up to 1K groups; MLD v1/v2 snooping |
| Power & physical | |
| Power supply | AC 100–240 V (rated 110 V / 220 V), 1× AC; 600 W supply rating |
| Max. power consumption | ≤400 W |
| PoE | IEEE 802.3af / 802.3at on all 24 ports, 30 W per port, 370 W total budget |
| Dimensions (L × W × H) | 442 × 216.2 × 43.6 mm — 1U, 19-inch |
| Weight | 3.2 kg |
| Operating temperature | −30 °C to +60 °C; 5%–95% RH, non-condensing |
| Storage temperature | −40 °C to +85 °C |
The FiberTrix-8 speaks GPON and EPON in dual mode; the FiberTrix-24 follows its SFP module across GPON, XG-PON and XGS-PON. Both are OMCI-managed and standards-based — ITU-T G.984, G.987 and G.9807.1, IEEE 802.3ah.
PON MDUs with PoE+ on every GE port. The FiberTrix-24 part numbers share the same hardware — the PON mode follows the ONU optical module supplied. Contact UGrid to confirm the configuration for your OLT and ODN.
Same job at two scales — the desktop FiberTrix-8 for a workspace or small site, the 1U FiberTrix-24 for a building or cabinet. For a single host device, see the UNT SFP sticks; for outdoor sites, the uOPG800.
| FiberTrix-8 | FiberTrix-24 | |
|---|---|---|
| PON | XPON dual mode — GPON / EPON | PON SFP slot — GPON / XG-PON / XGS-PON by module |
| User ports | 8× GE, all PoE+ | 24× GE, all PoE+ |
| PoE budget | 54 V DC adapter, ≤130 W supply | 370 W total, AC powered |
| Form factor | Desktop, 205 × 125 × 28 mm | 1U 19-inch, 442 × 216.2 × 43.6 mm |
| Operating temperature | −10 °C to +55 °C | −30 °C to +60 °C |
A PON MDU (multi-dwelling unit) is a PON terminal that serves many endpoints at one site: it terminates a single fiber drop and delivers Ethernet to a building, floor or workspace. UGrid's FiberTrix MDUs add IEEE 802.3af/at PoE+ on every port, so phones, cameras and access points power straight off the fiber drop.
Choose the FiberTrix-8 for a desk, office or small site: 8 PoE+ ports, dual-mode GPON/EPON, desktop size. Choose the FiberTrix-24 for buildings and cabinets: 24 PoE+ ports with a 370 W budget in a 1U rackmount, GPON today and XG-PON or XGS-PON by swapping the PON SFP module, and a −30 to +60 °C operating range.
The FiberTrix-8 does: its XPON port runs GPON or EPON in dual mode (ITU-T G.984 / IEEE 802.3ah). The FiberTrix-24 runs GPON, XG-PON or XGS-PON according to the ONU optical module in its PON SFP slot.
Any IEEE 802.3af/at device — IP cameras, wireless APs, IP phones — up to 30 W per port. The FiberTrix-24 supplies 370 W in total across its 24 ports; the FiberTrix-8 is fed by a 54 V DC adapter rated up to 130 W.
Both models are standards-based and OMCI-managed for mainstream PON OLTs — GPON and EPON for the FiberTrix-8, GPON, XG-PON and XGS-PON for the FiberTrix-24 — including UGrid's U5 and U8 GPON OLTs and the U10 combo OLT.
