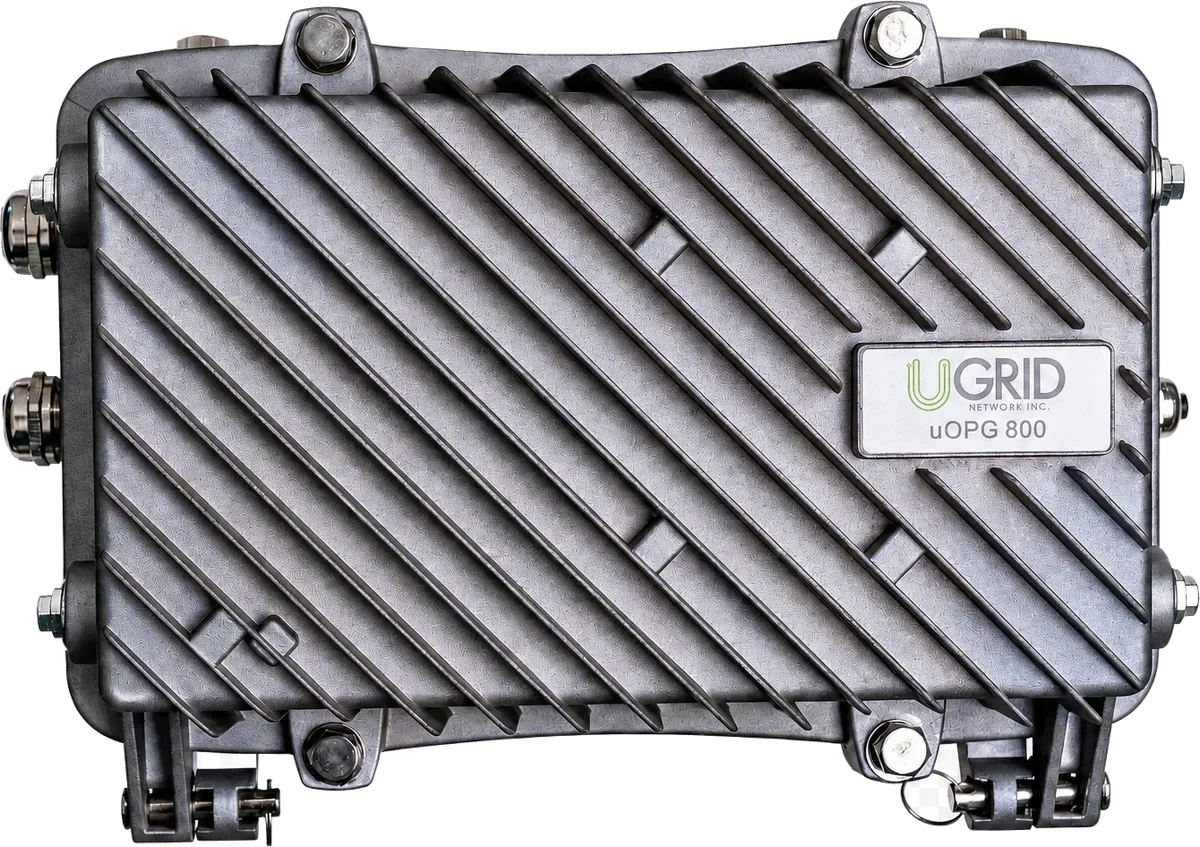

The uOPG800 is an outdoor GPON ONT — a temperature-hardened, IP67-sealed fiber terminal that brings GPON to the curb (FTTC) and powers cameras, digital signage and Wi-Fi access points over four PoE ports.
IP67 dust- and water-resistant housing that operates from −40 °C to +60 °C, with 6 kV lightning protection for exposed outside-plant sites.
ITU-T G.984.x with G.984.5 support and Class B+ optics — 2.5 Gbps downstream, 1.25 Gbps upstream, up to 20 km, with SFF-8472 optical diagnostics.
4× IEEE 802.3af/at Gigabit Ethernet ports: 30 W on a single port and up to 75 W total, with remote PoE Mode A/B selection.
Draws 60/90 VAC line power from the HFC coax cable (40–120 VAC wide-range input), or runs from 110–220 VAC mains with the AC power supply option.
Every PSE port is monitored and managed individually, including the input and output voltage and current of each terminal.
OMCI, Web, Telnet and SNMP for remote monitoring and configuration; OMCI / FTP upgrade with dual-image backup and rollback.
As an outdoor fiber ONT, the uOPG800 terminates GPON at the curb — fed through passive splitters from a U5 Series GPON OLT — and powers and connects field devices over its four PoE ports.
IP67, temperature-hardened GPON termination for outside-plant networks exposed to temperature swings, voltage imbalance and electrical surges.
PoE links to security and traffic cameras and digital signage over the same LAN cable that carries their data.
Gigabit PoE ports power and connect Wi-Fi access points in the field — streets, campuses, venues and public spaces.
Every value below is from the official uOPG800 datasheet (R02).
| PON interface | |
| Port | 1× GPON — ITU-T G.984.x (G.984.5 support), Class B+ |
|---|---|
| Connector | SC/UPC; LC/UPC ordering option |
| Wavelength | TX 1310 nm, RX 1490 nm |
| Line rate | 2.5 Gbps downstream, 1.25 Gbps upstream |
| TX optical power | +0.5 to +5 dBm |
| RX sensitivity | ≤ −28 dBm |
| Optical diagnostics | Compliant with SFF-8472 |
| Transmission distance | 20 km maximum |
| Ethernet & PoE | |
| Ethernet | 4× 10/100/1000BASE-T; auto-negotiation; MDI/MDIX auto detection |
| Cable distance | 100 m maximum |
| PoE standard | IEEE 802.3af/at |
| PoE output | 30 W single port; 75 W maximum across 4 ports |
| PoE mode | Remote PoE Mode A/B selection |
| Power | |
| Cable power (V1) | 60/90 VAC HFC line power; 40–90 VAC cable power, 40–120 VAC wide-range input |
| AC mains (V3) | 110–220 VAC |
| Power dissipation | ≤ 10 W; provides 75 W PSE output |
| Surge protection | 6 kV lightning protection |
| Physical & environmental | |
| Dimensions (L × W × H) | 285 × 200 × 120 mm |
| Ingress protection | IP67, dust and water resistant |
| Operating environment | −40 °C to +60 °C; 10%–90% RH, non-condensing |
| Storage environment | −40 °C to +85 °C; 5%–90% RH, non-condensing |
| Software features | |
| Management | Web, OMCI, Telnet and console management; SNMP remote monitoring and configuration; OMCI and FTP remote upgrade; dual image backup and image rollback |
|---|---|
| Layer 2 bridging | Frame filtering by port and SA/DA; 2000-byte MTU; IEEE 802.3as compliant; 4K MAC address table |
| QoS | Classification by SA/DA IP, SA/DA MAC, VLAN priority and DSCP; traffic classes mapped to GEM ports and T-CONTs |
| VLAN | Ingress / egress 802.1p and 802.1Q tagging on each port; double tagging per IEEE 802.1ad |
| Port control | Per-port bandwidth control; port mirroring |
| PoE management | Per-port PSE monitoring and management; input / output voltage and current of each terminal; remote PoE Mode A/B selection |
Outdoor GPON gateway, 1× GPON Class B+, 4× GE 802.3af/at PoE (75 W total), IP67. Specify the optical connector and power supply when ordering — contact UGrid Network Inc. to confirm the full part number.
Both terminate GPON at the subscriber edge. The uOPG800 is a sealed outdoor unit that also powers field devices; the UNT sticks disappear inside a host device you already own.
| uOPG800 | UNT-G-SFP / UNT-XG-SFP | |
|---|---|---|
| Form factor | Sealed outdoor unit (IP67), pole / cabinet mount | SFP / SFP+ module inside a host device |
| User ports | 4× GE with PoE out | The host's SFP(+) cage |
| PoE output | 802.3af/at, 75 W total PSE | None |
| Power input | HFC cable power (40–120 VAC) or AC mains | Powered by the host |
| Environment | −40 °C to +60 °C, outdoor | Set by the host device |
An outdoor GPON ONT (optical network terminal — also classed as an ONU) terminates a GPON fiber line outside the building, in a sealed, temperature-hardened housing instead of an indoor box. The uOPG800 adds four Gigabit Ethernet ports with PoE, so one unit both ends the fiber and powers the devices at the site.
Two ways: from the HFC coaxial network's 60/90 VAC line power through a 40–120 VAC wide-range input (V1), or from 110–220 VAC AC mains (V3). No separate power supply is needed at the pole or cabinet.
Any IEEE 802.3af/at device — security and traffic cameras, digital signage, Wi-Fi access points — up to 30 W on one port and 75 W across all four ports, with per-port monitoring of voltage and current.
It is rated IP67 against dust and water, operates from −40 °C to +60 °C, and carries 6 kV lightning protection for exposed outside-plant locations.
It is the reference ONU for UGrid U5 Series GPON OLTs, also works on the GPON ports of the U10 combo OLT, and interworks by design with mainstream ITU-T G.984.x OLTs via standard OMCI.
